US-M3N Conical Spring Mechanical Seal High Performance Sealing for Rotary Equipment & Chemical Pumps
Executive Summary & Introduction
In continuous chemical processing, industrial wastewater reclamation, and rotary fluid handling, mechanical seal failure remains the leading cause of unplanned pump shutdowns and fluid leakage. Industrial centrifugal pumps, mixers, and agitators operate under dynamic pressures, fluctuating temperatures, and corrosive fluid chemistries.
The US-M3N Conical Spring Mechanical Seal manufactured by Unique Seal Engineering Co. is engineered to eliminate these operational vulnerabilities. Built with a tapered conical helical spring drive, compact balanced hydraulics, and rugged metallurgy, the US-M3N delivers superior reliability across demanding industrial sectors.
1. Key Engineering Features of the US-M3N

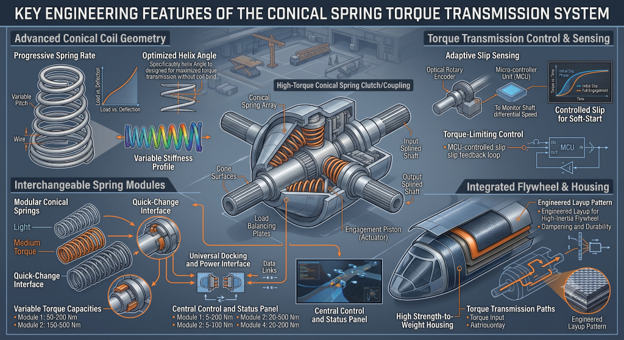

1.1 Conical Spring Torque Transmission
Unlike multi-spring or wave-spring designs that easily suffer from particulate clogging and dynamic hang-up in contaminated media, the US-M3N employs a heavy-gauge single conical spring:
• Directional Shaft Grip: The tapered conical coil mounts directly onto stepped shafts, tightly gripping the shaft shoulder in the direction of rotation.
• Positive Non-Slip Drive: As rotational torque increases, the spring naturally tightens its grip, transferring driving force directly into the primary rotary seal face without relying on vulnerable set screws.
1.2 Hydraulically Balanced Construction
The US-M3N utilizes internal hydraulic balancing to neutralize excessive fluid pressures acting across the seal interface:
• Reduces face frictional heat generation and power consumption.
• Prevents premature face vaporisation and blister formation.
• Extends operating life under continuous process pressures up to 20 kg/cm² (20 bar).
1.3 Broad Size Range for Stepped Shafts
Engineered to conform to international pump standards (DIN 24960 / EN 12756), the US-M3N accommodates shaft diameters from 12 mm to 150 mm, accommodating axial play of up to ±1.0 mm during thermal expansion and hydraulic pressure surges.
2. Technical Specifications & Operating Parameters
| Parameter | Specification / Operating Range |
|---|---|
| Shaft Diameter (d1) | 12 mm to 150 mm |
| Operating Pressure (p1) | Vacuum up to 20 kg/cm² (20 bar) |
| Temperature Limits (t) | -50 °C to +220 °C |
| Operating Speed (v) | Up to 2900 RPM |
| Axial Movement Allowance | ± 1.0 mm |
| Rotational Dependency | Dependent on shaft rotation direction (Right-hand / Left-hand coil) |
| Standards Compliance | Fits DIN 24960, ISO, and standard chemical centrifugal pumps |
3. Metallurgy and Seal Face Combinations
To maintain chemical inertness and abrasion resistance, Unique Seal Engineering Co. manufactures the US-M3N using high-grade industrial materials:
1. Rotary Primary Ring:
• Antimony or Resin-Impregnated Carbon: Offers self-lubricating properties, low friction coefficient, and smooth dry-run resilience during startup.
• Silicon Carbide (SiC): For applications containing light abrasives or aggressive oxidizers.
2. Stationary Mating Ring:
• Sintered Silicon Carbide (SiC) / Tungsten Carbide (TC): Delivers superior hardness and thermal conductivity to dissipate interface friction.
• Special Alloy / CrMo Cast Steel: Cost-effective configuration for general water and light chemical duties.
3. Secondary Seals (Elastomers):
• FKM (Viton): Resistant to hydrocarbons, oils, and high temperatures up to 200 °C.
• EPDM: Optimal for hot water, steam, and polar chemical solvents.
• PTFE / FFKM: For aggressive acid and alkali exposure.
4. Spring & Metal Components:
• Standard construction in AISI 316 Stainless Steel, with options for Hastelloy-C upon custom request.
4. Key Industrial Applications
The US-M3N conical spring seal is widely deployed across critical equipment:
• Chemical Processing Pumps: Acids, caustic alkalis, organic solvents, and specialty chemical transfer lines.
• Wastewater & Effluent Treatment: Raw sewage pumps, aeration feed, sludge transfer, and industrial filtration systems.
• Mixers, Blenders & Agitators: Stepped-shaft mixing vessels requiring non-slip positive torque transfer.
• Pulp & Paper Processing: Moderate solids fluid transport and liquor handling pumps.
5. Related Mechanical Seal Solutions & Interlinking Guide
Depending on your specific operating parameters, Unique Seal Engineering Co. provides complementary sealing technologies:
• For Slurry and Contaminated Media: When handling thick sludge or high suspended solids, deploy the US ARO-SP Pusher Seal (engineered with an anti-extrusion backup ring and clog-resistant design).
• For High-Pressure Process Lines (up to 80 kg): For extreme pressure chemical lines and petrochemical refining, consider the US-M7N Mechanical Seal.
• For Non-Clogging Elastomeric Bellows: If you require an elastomeric bellows construction without shaft fretting, explore the US-2100 Universal Mechanical Seal.
• For Standard Compact Pumping: For standard ANSI, ISO, and DIN industrial pumps with bi-directional drive, choose the Single Spring Seal US 1507/1508.
6. Sizing and Ordering Checklist
Because the conical spring grips via rotation direction, verify the following before ordering:
1. Direction of Shaft Rotation: Determine whether your shaft turns Clockwise (CW / Right-hand spring) or Counter-Clockwise (CCW / Left-hand spring) when looking into the pump seal chamber.
2. Stepped Shaft Dimensions: Confirm d1 (seal face shaft diameter) and d2 (step diameter).
3. Fluid Compatibility: Specify chemical concentration and normal/peak temperature to ensure correct elastomer selection.
