Cartridge Seal vs Component Mechanical Seal: Key Differences

Have you ever bought something that looked perfect but turned out to be the wrong choice?

Maybe it was a phone cover that did not fit your phone or a charger that looked the same but was not compatible.

It looked like the right choice.

But it wasn't.

It simply didn't fit your needs.

The same thing happens with mechanical seals.

A cartridge seal and a component mechanical seal may look similar, but they are designed for different applications. Choosing the right one can improve pump performance, reduce leakage, and lower maintenance needs.

In this guide, you'll learn the key differences between cartridge seals and component mechanical seals, along with their advantages, disadvantages and how to choose the right one for your application.

Let’s get started.

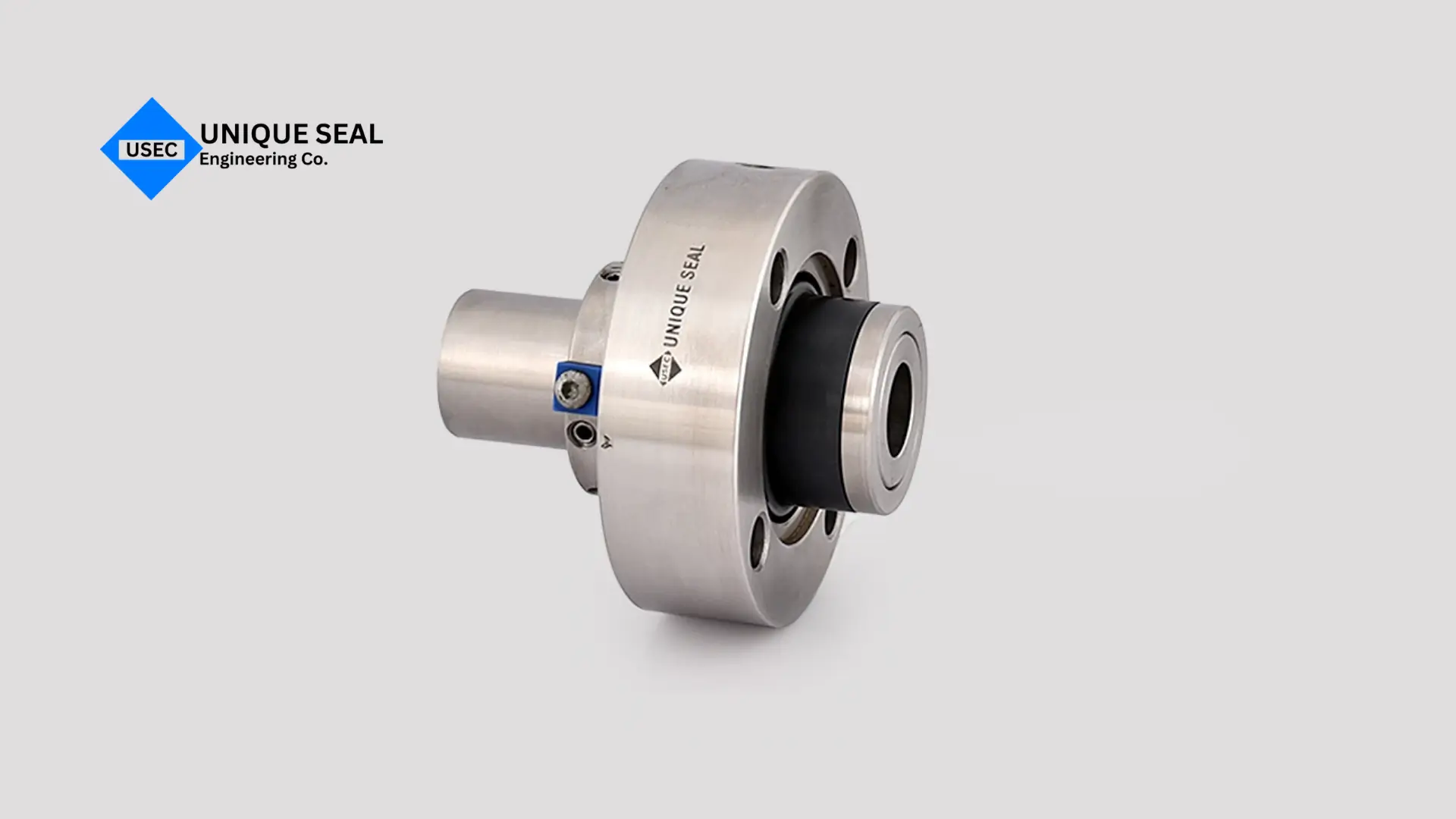

What is a cartridge seal?

A cartridge seal is a mechanical seal that comes ready to install. Its important parts are already assembled, so you do not have to fit each part separately. This makes the installation process much easier and faster.

Because everything is already set, there is less chance of installation mistakes. This is one of the main reasons why cartridge seals are widely used in many industrial pumps.

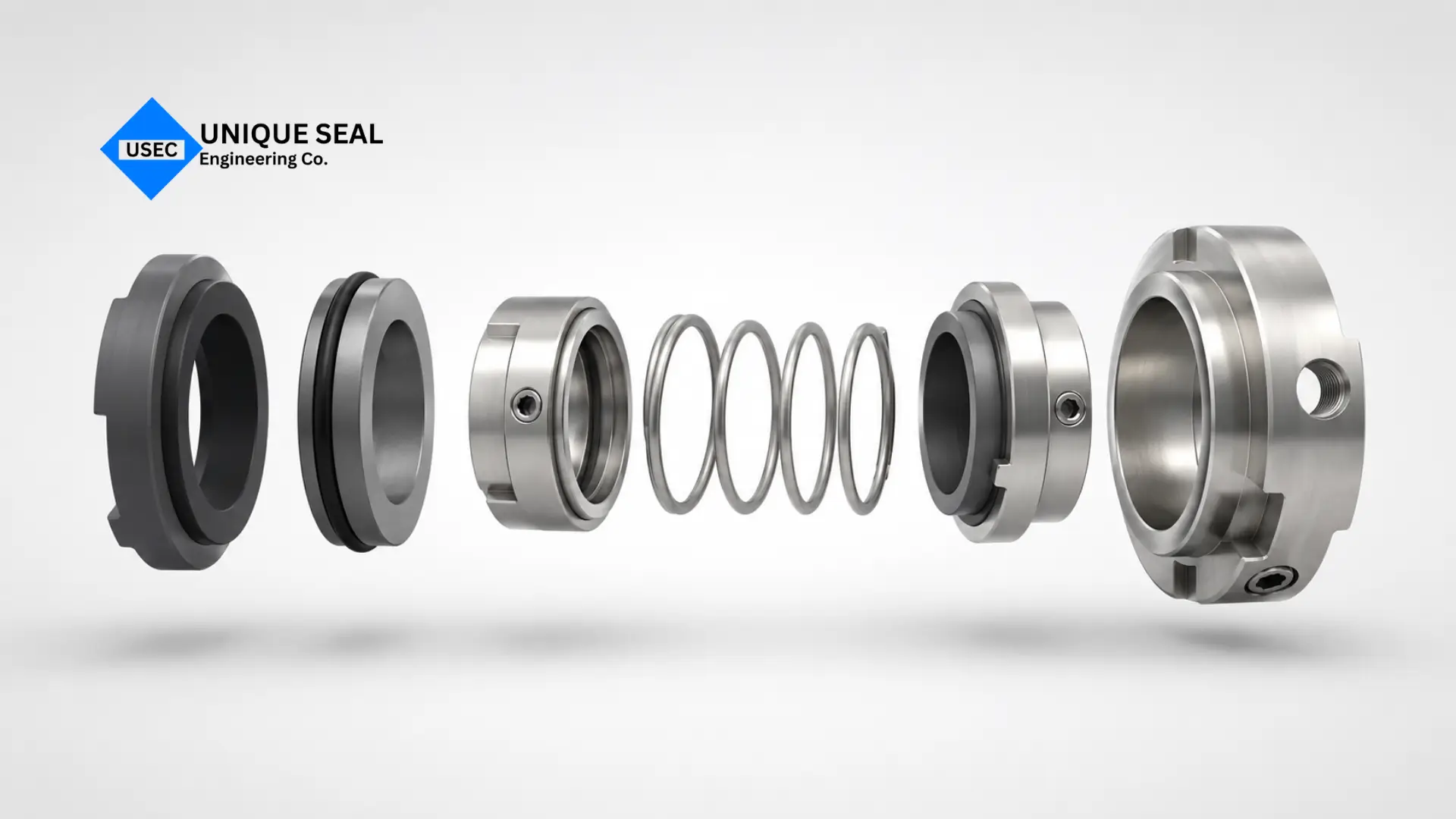

What is a component mechanical seal?

A component mechanical seal is made up of separate parts that are assembled during installation. Unlike a cartridge seal, it does not come as a ready-to-install unit. Each part needs to be fitted correctly for the seal to work properly.

Because of this, installing a component mechanical seal takes more time and care. However, it is still a popular choice for many pumps because it is more affordable and works well in different applications.

Quick comparison between cartridge seal vs component mechanical seal

Cartridge seals and component mechanical seals both are designed to control leakage, but they are not the same. They differ in design, installation, maintenance, and cost. The table below gives a quick comparison to help you understand the key differences at a glance.

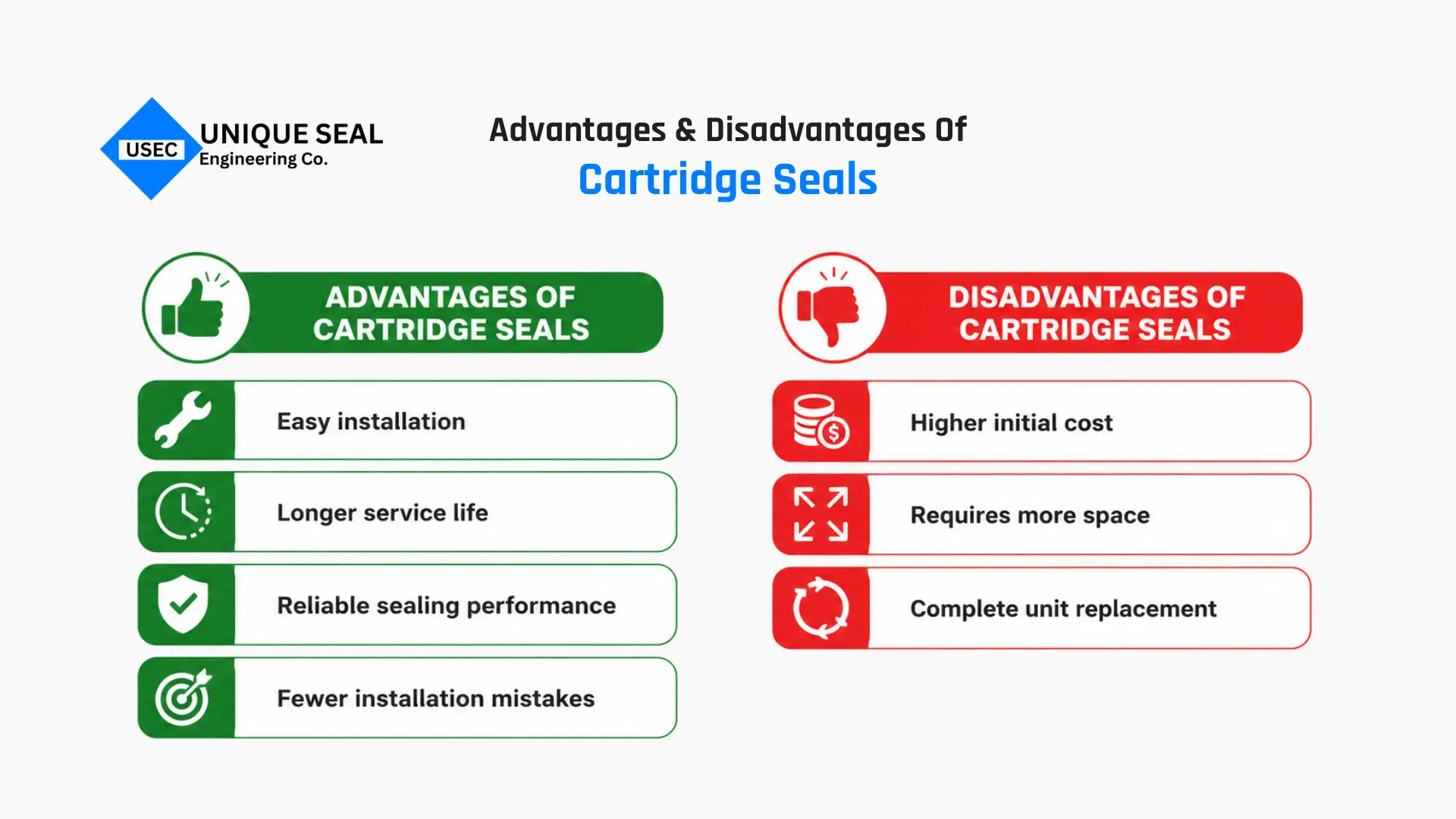

Advantages & disadvantages of cartridge seals

Advantages of cartridge seals

Cartridge seal has many benefits compared to component seal. Let’s see each of them one by one.

Easy installation

A cartridge seal comes as a complete unit, so it is much easier to install. There is no need to assemble different parts during installation. This helps save time and makes the installation process much simpler.

Longer service life

It is designed to provide strong performance for a longer time. When it is installed correctly and used in the right operating conditions, it can last longer and reduce the need for frequent replacements.

Reliable sealing performance

For any pump, good sealing is just as important as proper installation. A cartridge seal helps keep the pump properly sealed during operation. As a result, the pump runs smoothly, even in different working conditions.

Fewer installation mistakes

Installing a mechanical seal correctly can sometimes be challenging. Since a cartridge seal comes as a complete unit, there are fewer chances of installation mistakes. This helps the seal work properly from the very beginning.

Disadvantages of cartridge seals

Cartridge seals offer many benefits, but they also have a few limitations.

Higher initial cost

A cartridge seal has a higher purchase cost than a component mechanical seal. This means you need to spend more when buying it. For businesses with a limited budget, this may not always be the best option.

Requires more space

Some pumps have limited installation space. In such cases, a cartridge seal may not fit as easily because it comes as a complete unit. Because of this, it may not be the right choice for every pump.

Complete unit replacement

If a cartridge seal gets damaged, the entire unit needs to be replaced. You cannot replace only one damaged part. This can make the replacement cost higher than a component mechanical seal.

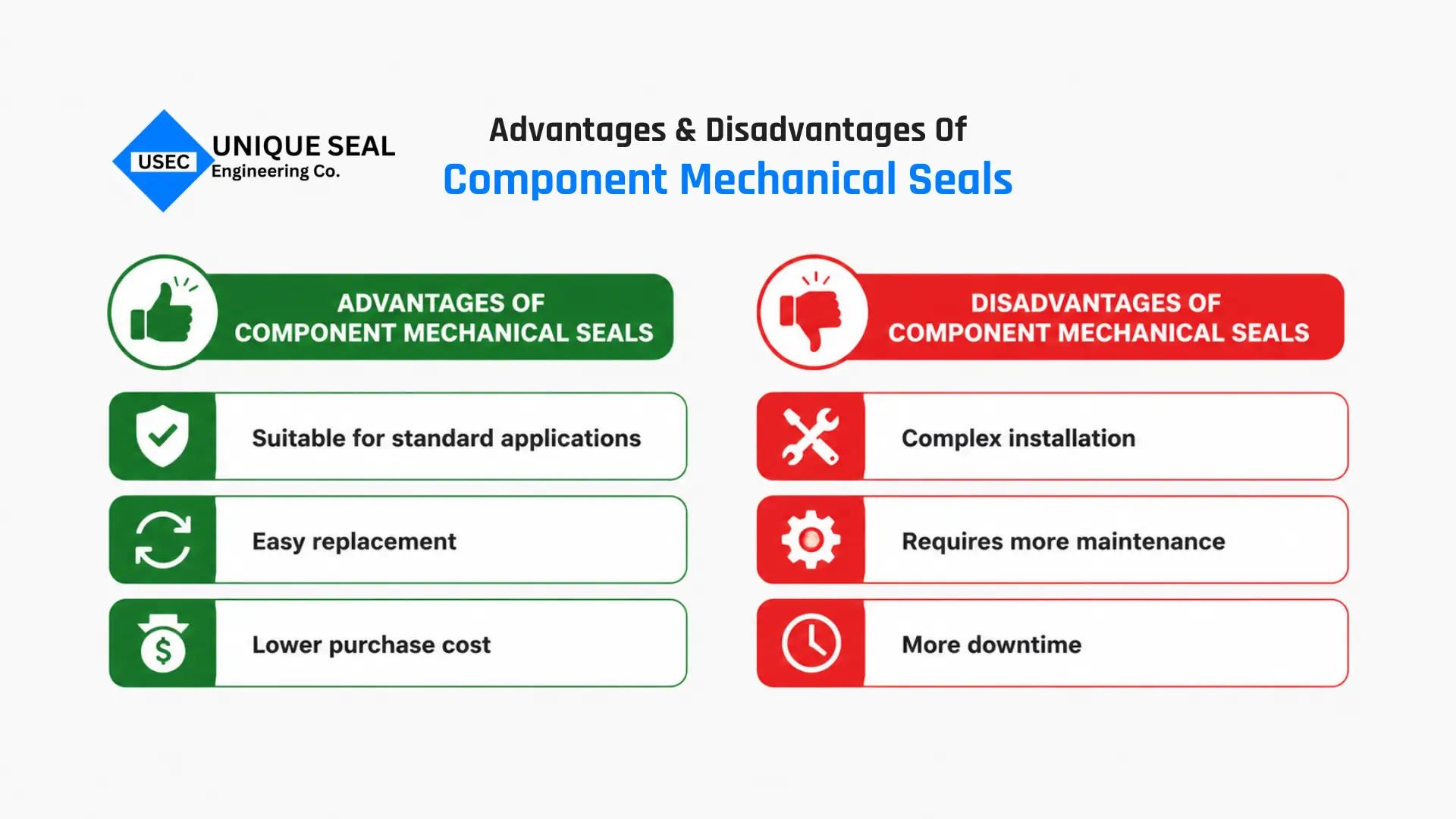

Advantages & disadvantages of component mechanical seals

Advantages of component mechanical seals

Component mechanical seals offer several benefits for different industrial applications. It is known for its simple design, lower cost, and easy replacement. Here are some of the main advantages of Component mechanical seals:

Suitable for standard applications

Not every pump works under high pressure or harsh conditions. Many pumps are used for normal day-to-day operations. For these types of pumps, a component mechanical seal works well and provides good sealing performance.

Easy replacement

If one part of a component mechanical seal gets damaged, you can easily replace only that individual part. There is no need to replace the complete seal. This can help reduce replacement costs.

Lower purchase cost

If you are looking for a more affordable sealing solution, a component mechanical seal can be a good option. It costs less than a cartridge seal and helps save money when buying a new seal.

Disadvantages of component mechanical seals

Apart from the advantages, component mechanical seals have disadvantages as well. Let me share them.

Complex installation

Installing a component mechanical seal is not as simple as installing a cartridge seal. Because it comes in separate parts, extra care is needed during installation. A small mistake can affect its performance.

Requires more maintenance

A component mechanical seal may need more maintenance because it has separate parts. These parts should be checked from time to time to make sure the seal keeps working properly.

More downtime

If maintenance takes longer, the pump cannot run during that time. This means the downtime may increase, like repairs or part replacements are needed.

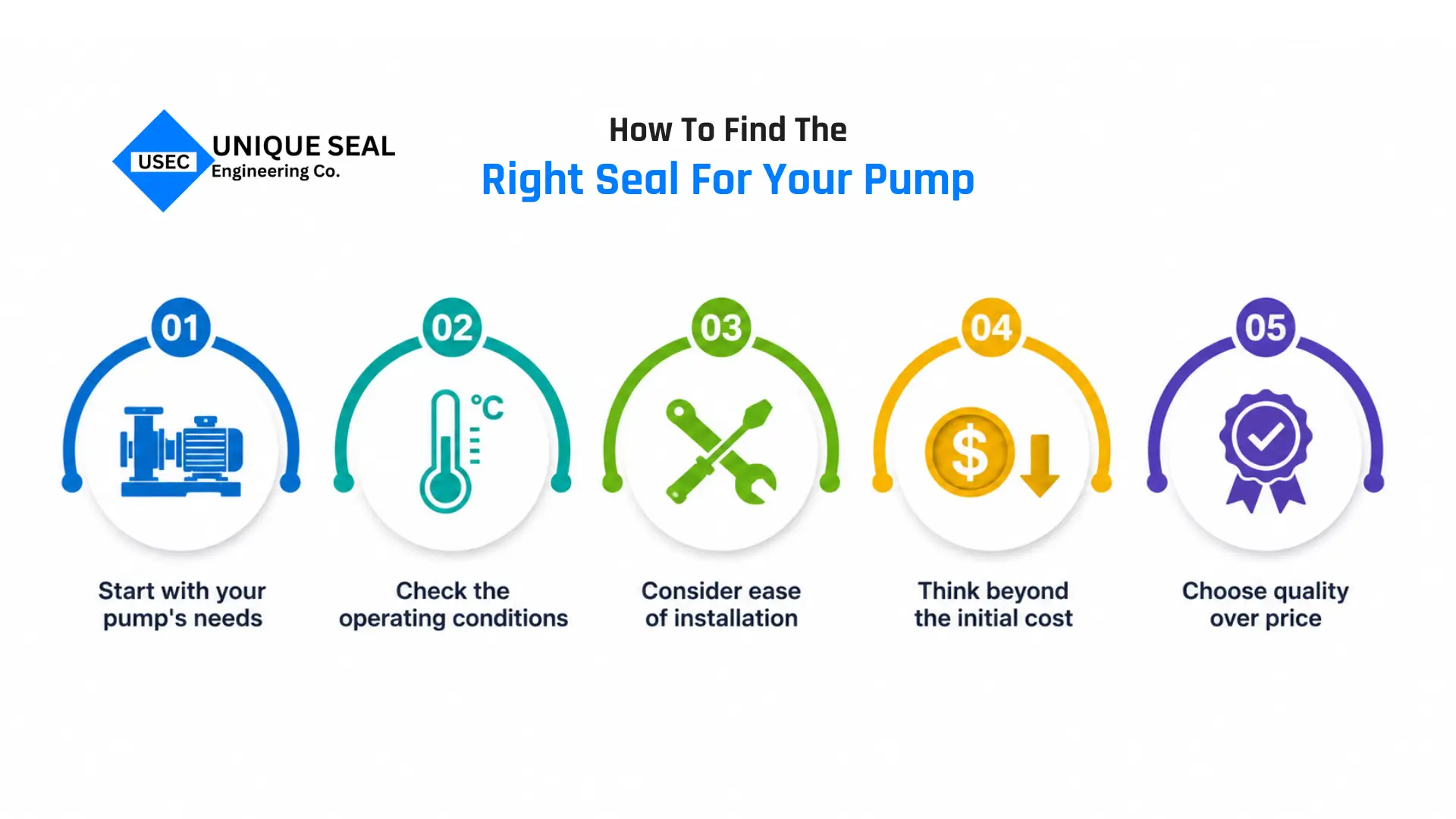

How to find the right seal for your pump?

There is no one mechanical seal that works for every pump. The right choice depends on how your pump operates and where it is used. Keeping a few important points in mind can make the selection process much easier.

Start with your pump's needs

The first step is to understand what your pump needs. Think about the type of fluid, pressure, temperature, and how the pump is used. Once you know these details, choosing the right mechanical seal becomes much easier.

Check the operating conditions

Pressure, temperature, and fluid type should never be ignored when selecting a mechanical seal. A seal that matches these conditions is more likely to perform well and last longer.

Consider ease of installation

Installation is an important factor when choosing a mechanical seal. If you want a quicker and simpler installation process, a cartridge seal can be a better option. It comes as a pre-assembled unit, which helps save time during installation.

Think beyond the initial cost

A lower price does not always mean a better choice. Before selecting a mechanical seal, also think about its performance, maintenance needs, and service life. These factors can make a big difference in the long run.

Choose quality over price

A low price may look attractive, but quality should always come first. A better-quality mechanical seal can provide better performance and a longer service life. This makes it a smarter choice over time.

Ready to choose between a cartridge seal and a component mechanical seal

Both cartridge seals and component mechanical seals have their own advantages. The right choice depends on your pump, operating conditions, and budget. However, if you are looking for easier installation, reliable sealing performance, and a longer service life, a cartridge seal can be a better option for many applications.

Before making a final decision, don't look only at the purchase cost. Compare the installation process, maintenance, performance, and service life as well. Choosing the right mechanical seal will help improve pump performance, reduce leakage, and support trusted operation over time.

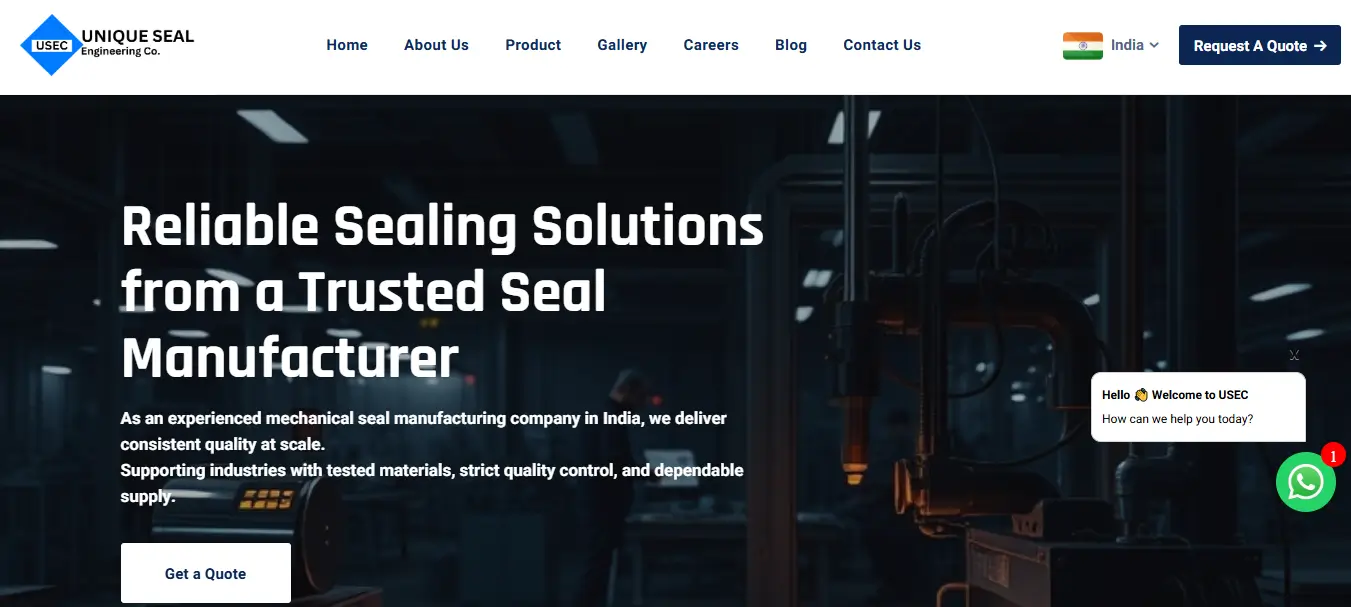

Unique Seal Engineering Co. manufactures reliable cartridge and component mechanical seals designed for dependable performance, easy installation, and long service life across industrial applications.

If you are looking for a good cartridge seal, Unique Seals offers a wide range of high-quality cartridge seals designed for different industrial applications. Our sealing solutions are built to deliver good performance, longer service life, and easier installation, helping you find the right seal for your pump.

Get your free quote today and find the right cartridge seal for your application.

Frequently asked questions about cartridge and component seal

Can a component mechanical seal be replaced part by part?

Yes, if one part of a component mechanical seal gets damaged, you can often replace only that individual part instead of changing the complete seal. This can help reduce replacement costs and make repairs more affordable.

Which seal is easier to install: cartridge seal or component mechanical seal?

A cartridge seal is easier to install because it comes as a pre-assembled unit. A component mechanical seal has separate parts that need to be assembled during installation, which takes more time and care.

Why are cartridge seals more expensive than component mechanical seals?

A cartridge seal comes as a pre-assembled unit, making installation easier and reducing the chances of installation mistakes. These added benefits are one reason why it usually costs more. It can also help reduce maintenance needs over time.

How can I increase the life of a mechanical seal?

Using the right seal, installing it correctly, and following regular maintenance can help extend its service life. Keeping the pump in proper operating conditions also helps reduce wear and leakage. This can also improve the overall performance of your pump.

Can I replace a component mechanical seal with a cartridge seal?

Yes, in many cases it is possible, but the replacement should match your pump's design and specifications. It is always a good idea to check compatibility before making the change.

How do I know which mechanical seal is right for my pump?

The right mechanical seal depends on your pump's operating conditions, such as fluid type, pressure, and temperature. Checking these factors before choosing a seal can help improve performance and reduce leakage.
