Pump Mechanical Seals: Types, Working & Selection Guide

Have you ever seen a pump suddenly start leaking and wondered why? Or noticed that one pump runs smoothly for years while another fails in just a few months?

Most people blame the motor or the pipes, but the real answer often lies inside the pump, the mechanical seal.

A mechanical seal may look like a small component, but it plays a huge role in preventing leaks, protecting equipment, and keeping operations safe and efficient. Without a properly selected and installed mechanical seal, even the best pump can fail.

In this complete guide, you’ll learn everything about different types of mechanical seals for pumps in simple words, clear explanations, and practical insights.

Whether you are a beginner, engineer, or maintenance professional, this guide will help you understand how mechanical seals work, why they fail, and how to choose the right one for your pump.

Let’s dive in.

What is a mechanical seal in a pump?

A mechanical seal pump refers to a pump that uses a mechanical seal to prevent fluid leakage along the rotating shaft. Unlike packing seals, a pump mechanical seal offers better efficiency, reduced leakage, and longer service life.

Why mechanical seals are used in pumps

Mechanical seals are used because they provide better sealing than traditional packing. They reduce leakage, minimize friction, and lower energy loss in pumps. They also help protect the environment by preventing hazardous fluid leaks.

Where mechanical seals are located in a pump

A mechanical seal is installed between the pump shaft and the pump casing. It sits in the seal chamber near the impeller. This position allows it to block fluid from escaping along the rotating shaft.

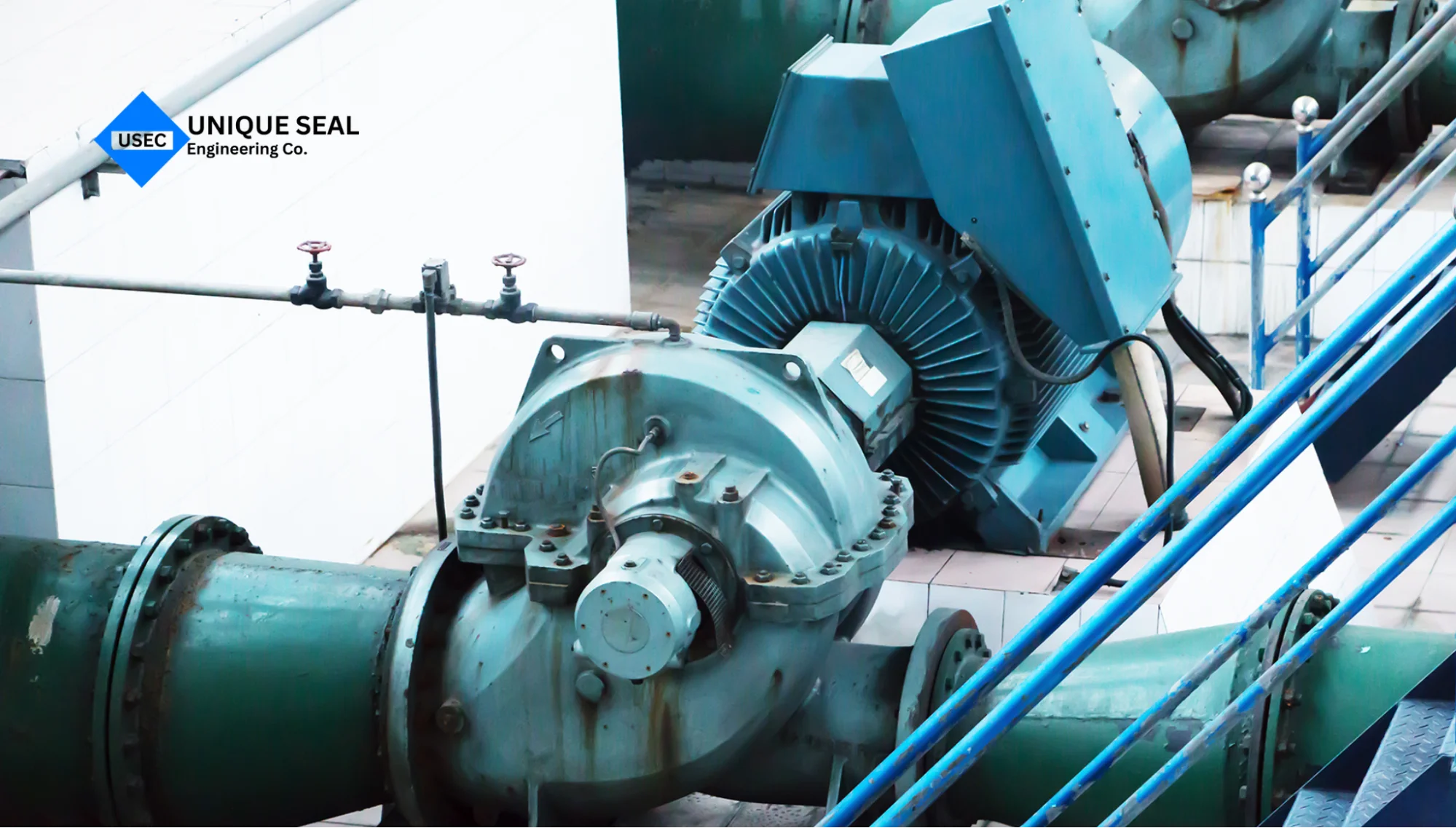

The working mechanism of mechanical seals in pumps

Mechanical seals work by creating a tight barrier between moving and stationary parts of the pump. Their performance depends on proper alignment, smooth seal faces, and controlled pressure. A small fluid film between the faces helps lubrication and reduces wear.

How seal faces create a leak-proof barrier

The rotating and stationary seal faces are pressed together with high precision. Their extremely smooth surfaces create a near-perfect seal. This prevents fluid from passing through while still allowing minimal movement.

Role of fluid film between seal faces

A very thin layer of pumped fluid forms between the seal faces. This fluid film acts as a lubricant, reducing friction and heat generation. It also helps maintain stable sealing without direct metal-to-metal contact.

How shaft rotation affects sealing performance

As the shaft rotates, the seal faces slide against each other. Proper balance and alignment ensure smooth operation. If the shaft wobbles or vibrates, it can damage the seal and cause leakage.

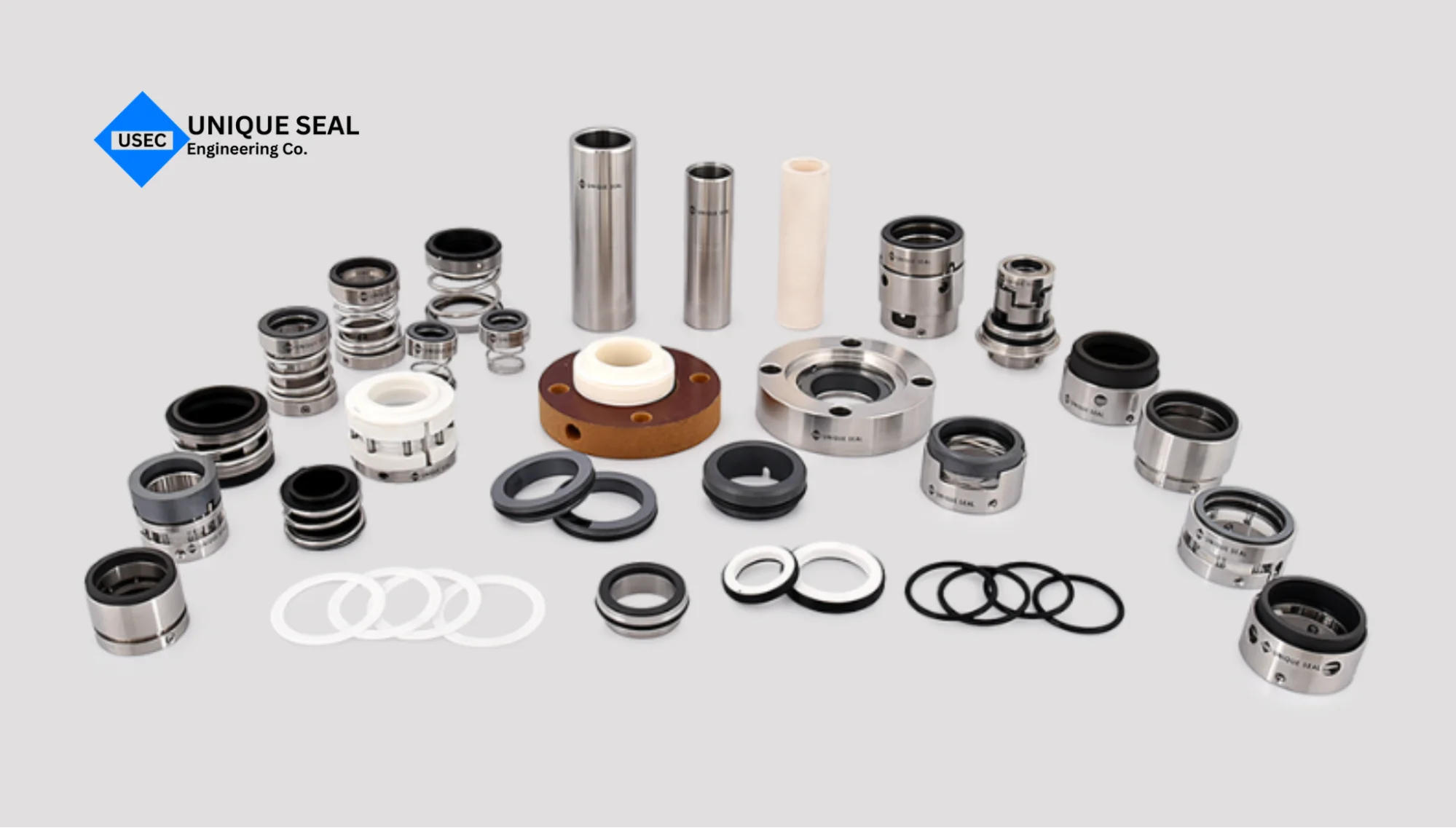

Essential components that make a mechanical seal work

A mechanical seal is not a single piece but a combination of multiple components. Each part has a specific function in maintaining proper sealing. If any component fails, the entire seal may stop working effectively.

Primary (rotating) seal ring

This part is attached to the rotating pump shaft. It moves along with the shaft and makes contact with the stationary ring. It is usually made of hard materials like carbon or ceramic.

Mating (stationary) seal ring

This ring remains fixed inside the pump casing. It provides a smooth surface against which the rotating ring slides. It is often made from materials like silicon carbide or tungsten carbide.

Secondary sealing elements (O-rings and gaskets)

These components prevent leakage around the seal faces. They help seal gaps between different parts of the mechanical seal. O-rings are commonly made from rubber or elastomer materials.

Springs, drive pins, and holders

Springs apply constant pressure between the seal faces. Drive pins ensure the rotating ring moves with the shaft. Holders keep all components properly aligned inside the seal assembly.

Factors that determine the choice of mechanical seal

Not every mechanical seal fits every pump application. The correct selection depends on fluid properties, operating conditions, and safety needs. Choosing the wrong seal can lead to frequent failures and costly downtime.

Nature of the pumped fluid

The type of fluid affects seal material selection. Corrosive, abrasive, or high-viscosity fluids require special seals. Clean water applications may use simpler and cost-effective seal designs.

Operating pressure of the pump

High-pressure pumps need balanced mechanical seals. Low-pressure systems can work with unbalanced seals. Pressure variations also influence seal face loading and durability.

Temperature conditions in the system

Extreme temperatures can damage seal materials. High temperatures require heat-resistant seals. Low temperatures may require flexible materials that do not become brittle.

Safety and environmental considerations

Hazardous or toxic fluids require double mechanical seals. These prevent leakage and protect workers and the environment. Industries like chemical and oil refining prioritize safety in seal selection.

Core types of mechanical seals used in pumps

Mechanical seals are designed in different ways to handle various operating conditions. Some seals provide flexibility, some are designed for high pressure, and others work better in clean or contaminated fluids. Knowing these core types helps in selecting the correct seal for reliable and long-term performance.

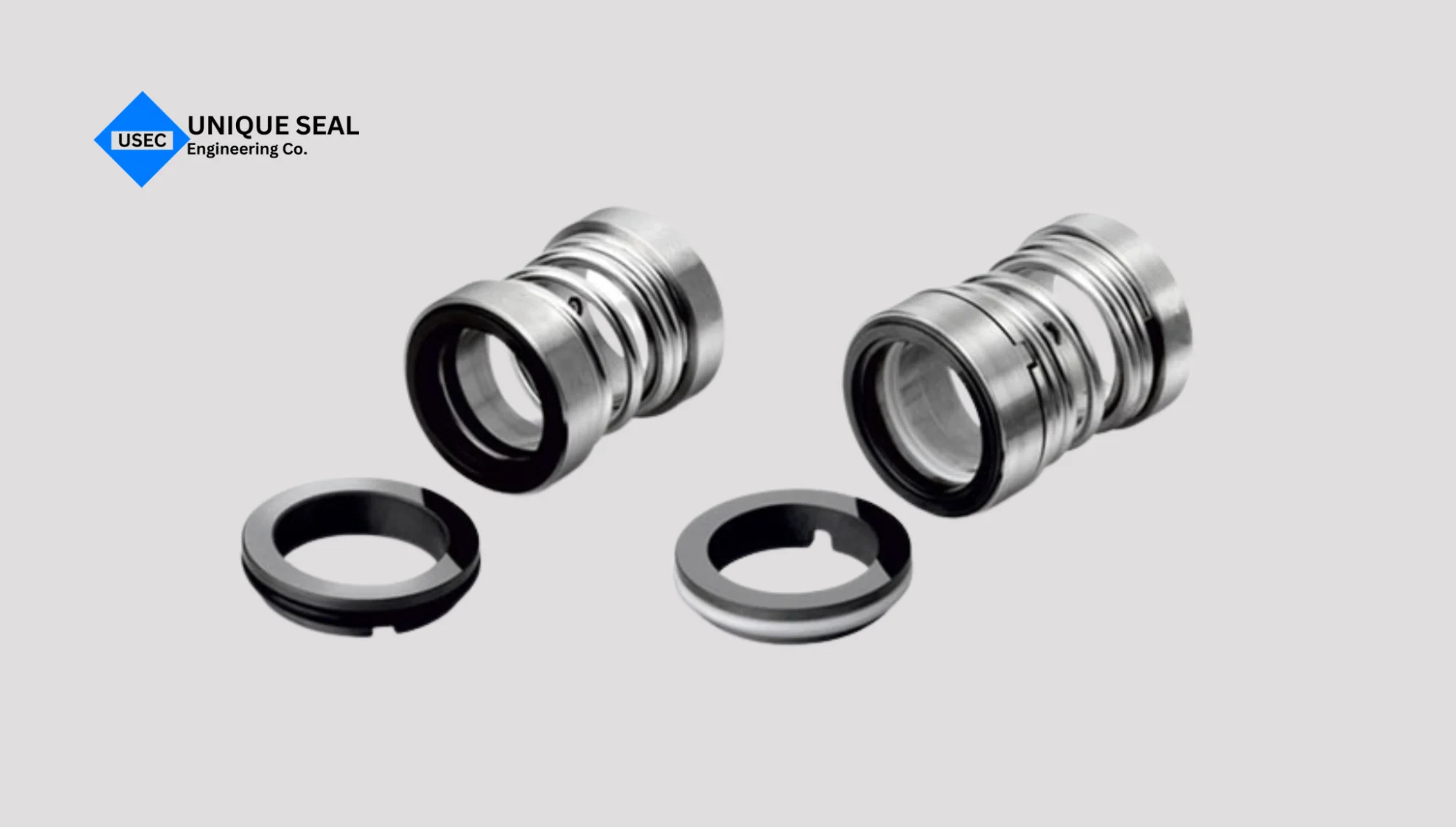

Pusher mechanical seals - flexible spring-loaded design

Pusher seals use springs to maintain constant contact between seal faces. The seal adjusts automatically to compensate for wear. This makes them suitable for many standard pump applications.

They are cost-effective and easy to install. However, they may be affected by dirty or abrasive fluids. Excessive friction and contamination can reduce their service life.

They are commonly used in water pumps, light chemical pumps, and general industrial applications.

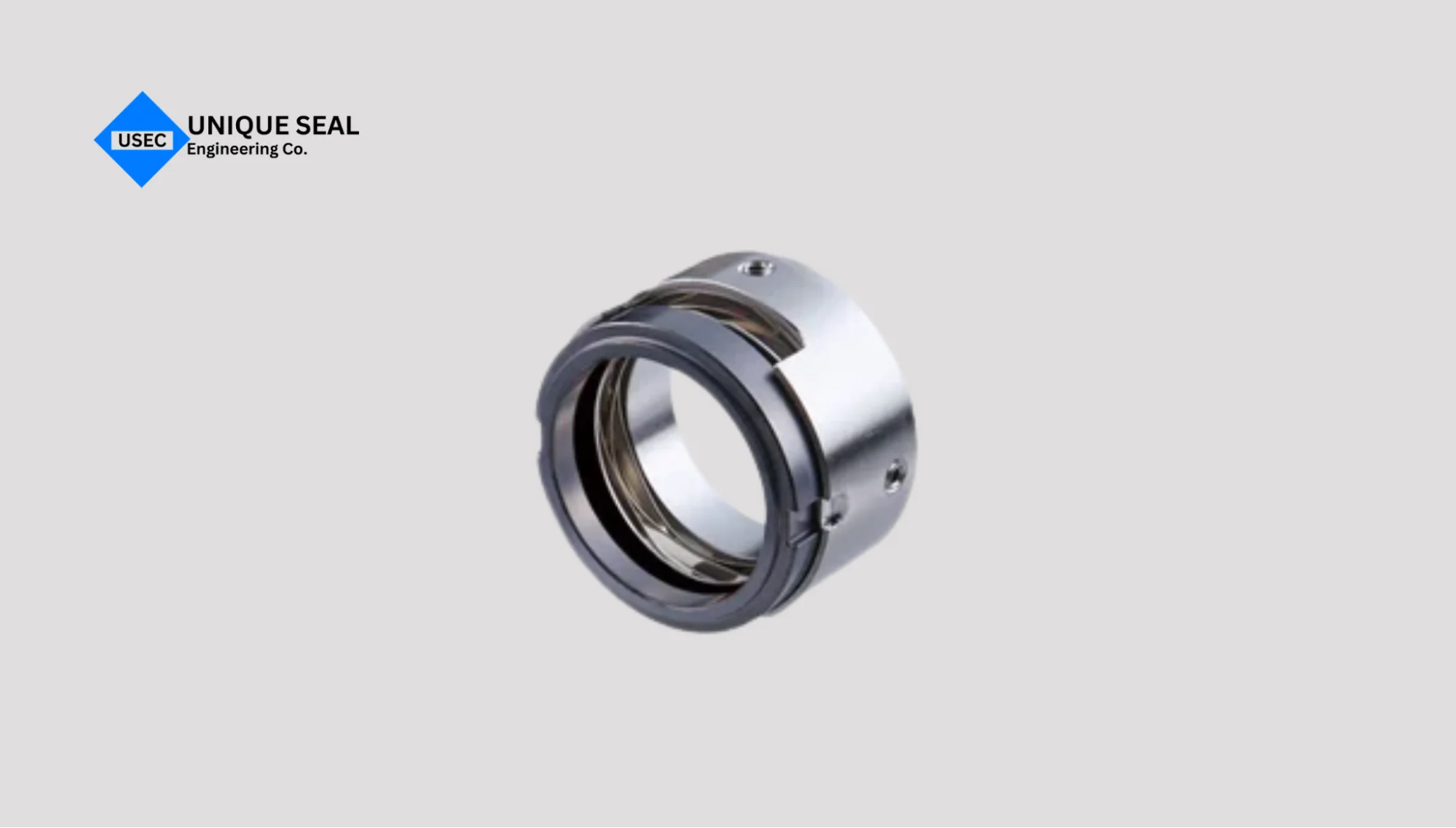

Non-pusher (bellows) mechanical seals - self-adjusting design

Bellows seals use a flexible metal or elastomer bellows instead of springs. This allows smooth movement and better compensation for wear. They work well in high-temperature and high-viscosity fluids. They are less affected by clogging compared to pusher seals and are widely used in chemical, oil, and high-temperature pump applications.

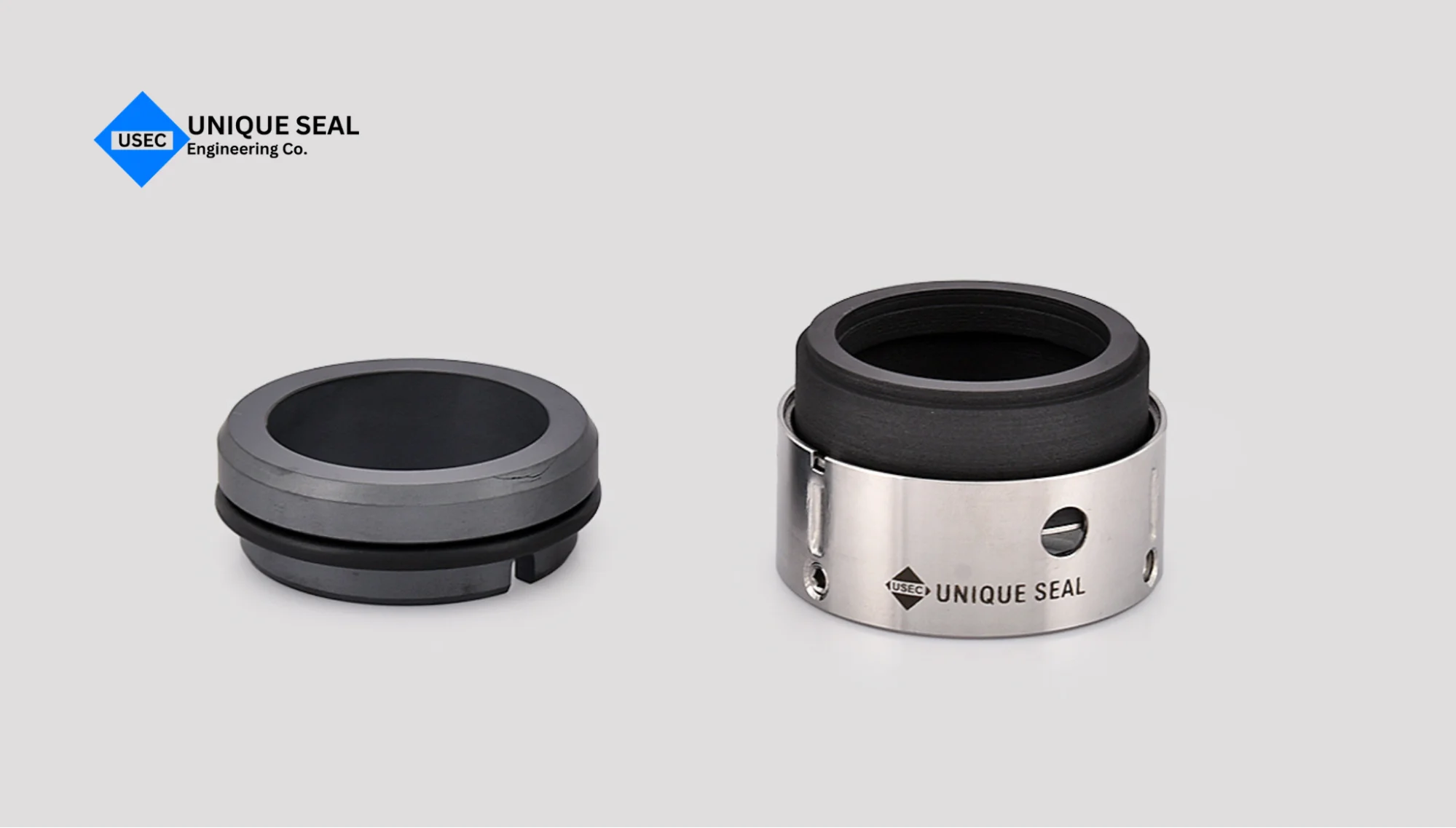

Balanced mechanical seals - designed for high pressure

Balanced mechanical seals are specially designed for high-pressure applications. In many industrial pumps, high pressure creates extra load on seal faces, which can increase friction and heat.

Balanced seals reduce the pressure acting on the seal faces. This helps minimize friction and heat generation. Lower face load improves seal life and reliability. Because of this, balanced seals are widely used in high-pressure pumps in oil, gas, and chemical industries.

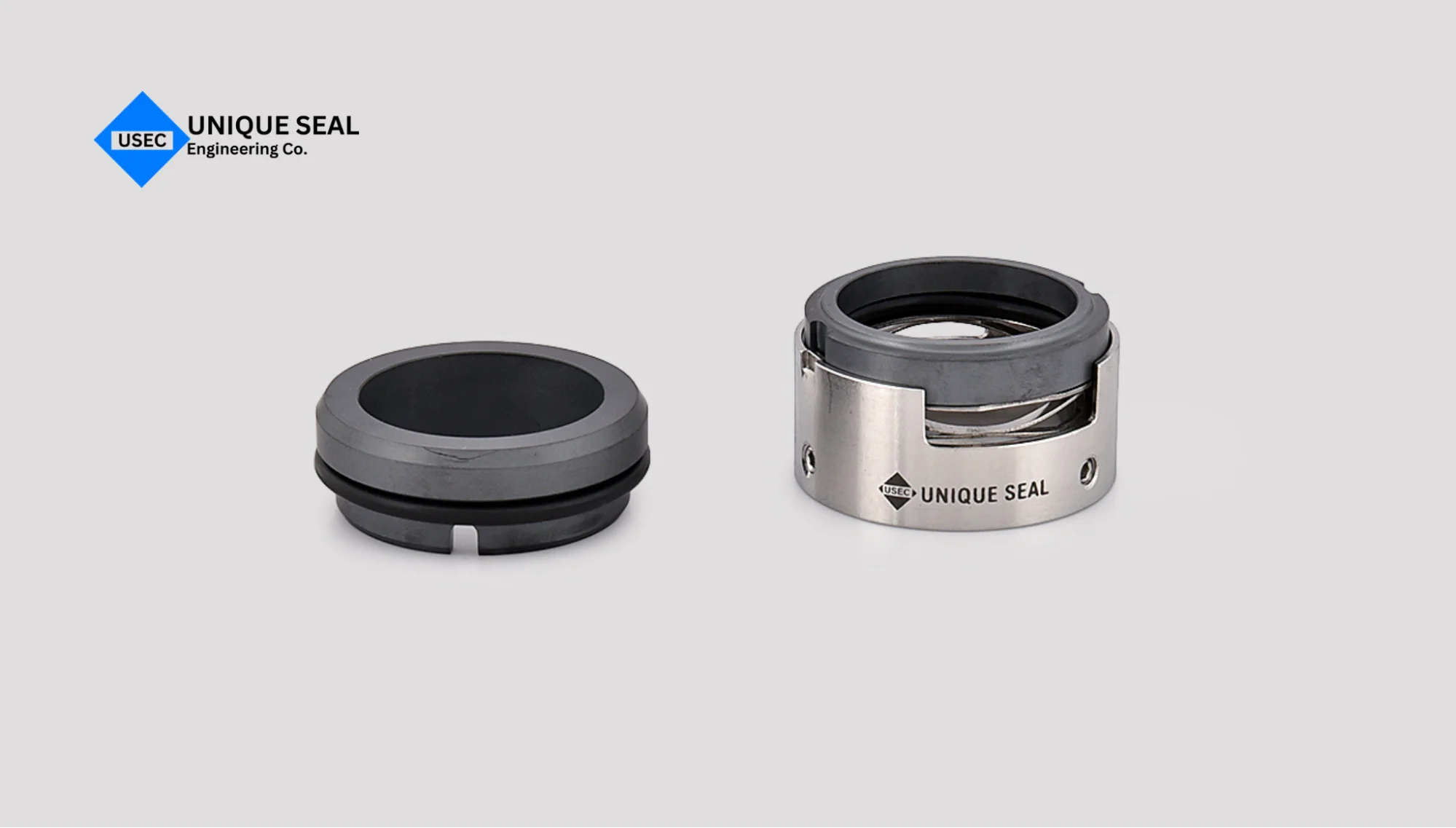

Unbalanced mechanical seals - simple and cost-effective

Unlike balanced seals, unbalanced mechanical seals have a simpler design. They are commonly used in applications where pressure is lower and operating conditions are less demanding.

These seals have fewer components, which makes them easy to manufacture and maintain. They work best in low-pressure and clean fluid applications such as water pumps and utility services.

Mechanical seals based on installation arrangement

Mechanical seals can also be classified based on how they are installed in the pump. Some provide basic sealing, while others offer advanced protection. Installation type affects performance, safety, and maintenance.

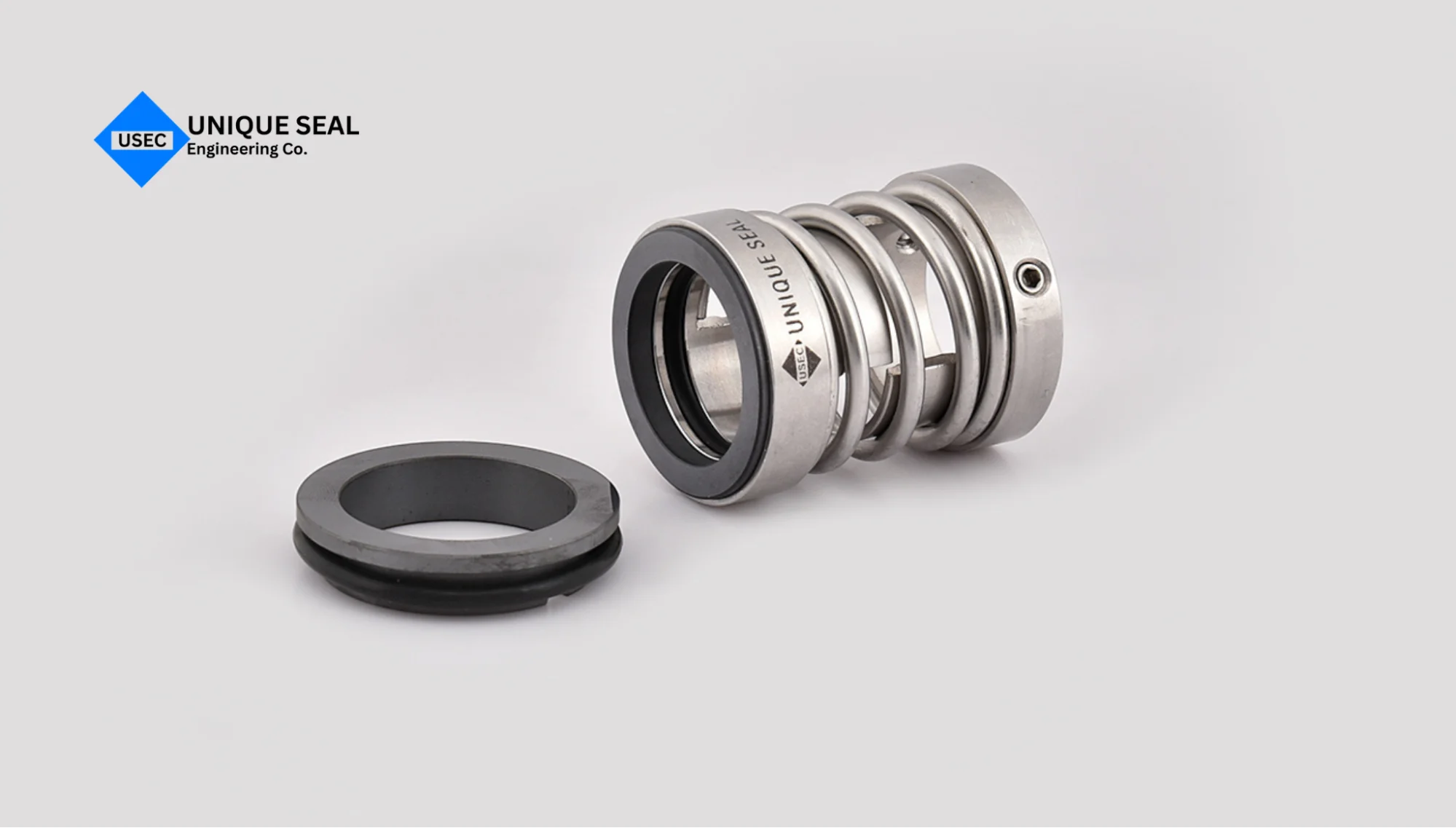

Single mechanical seals - basic sealing solution

A single seal has one set of seal faces. It is the simplest and most common type of mechanical seal.

It is cost-effective and easy to install but not suitable for hazardous fluids.

Double mechanical seals - enhanced safety and reliability

A barrier fluid is used between two seals to prevent leakage. It also cools and lubricates the seal faces.

Chemical, pharmaceutical, and oil industries commonly use double seals for safety.

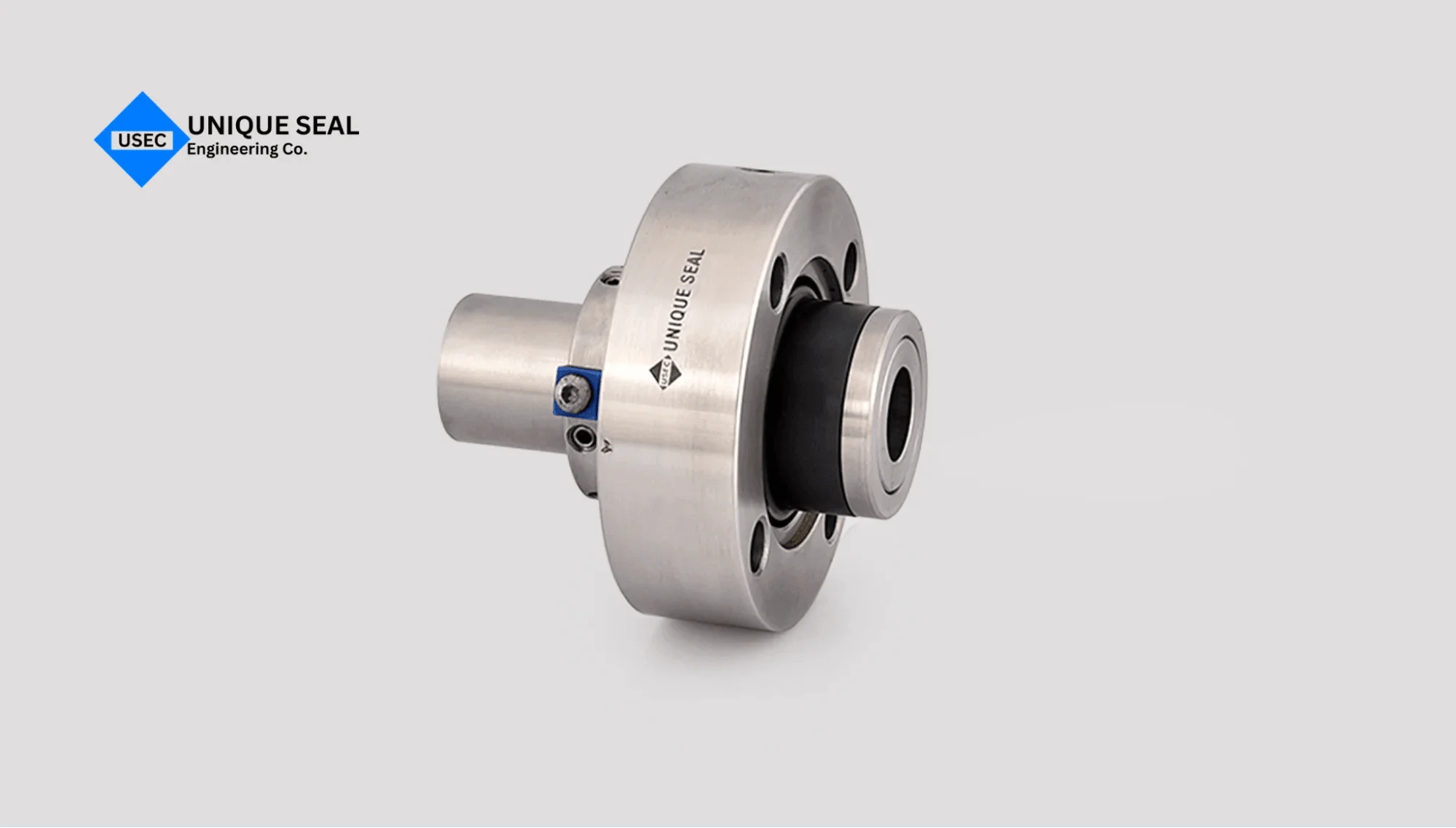

Cartridge mechanical seals - easy installation and maintenance

Cartridge mechanical seals are designed to make installation easier and reduce errors. These seals come as a complete pre-assembled unit, which helps ensure correct alignment.

They reduce installation mistakes, save maintenance time, and improve reliability. Cartridge seals also help protect the shaft and reduce maintenance effort. Because of these advantages, they are widely used in modern industrial pumps.

Advanced and special mechanical seal designs

Some pumps operate under extreme conditions such as high temperature, corrosive fluids, or large shaft sizes. Standard seals may not perform well in these situations. Special mechanical seal designs are used to handle these demanding conditions and provide reliable sealing.

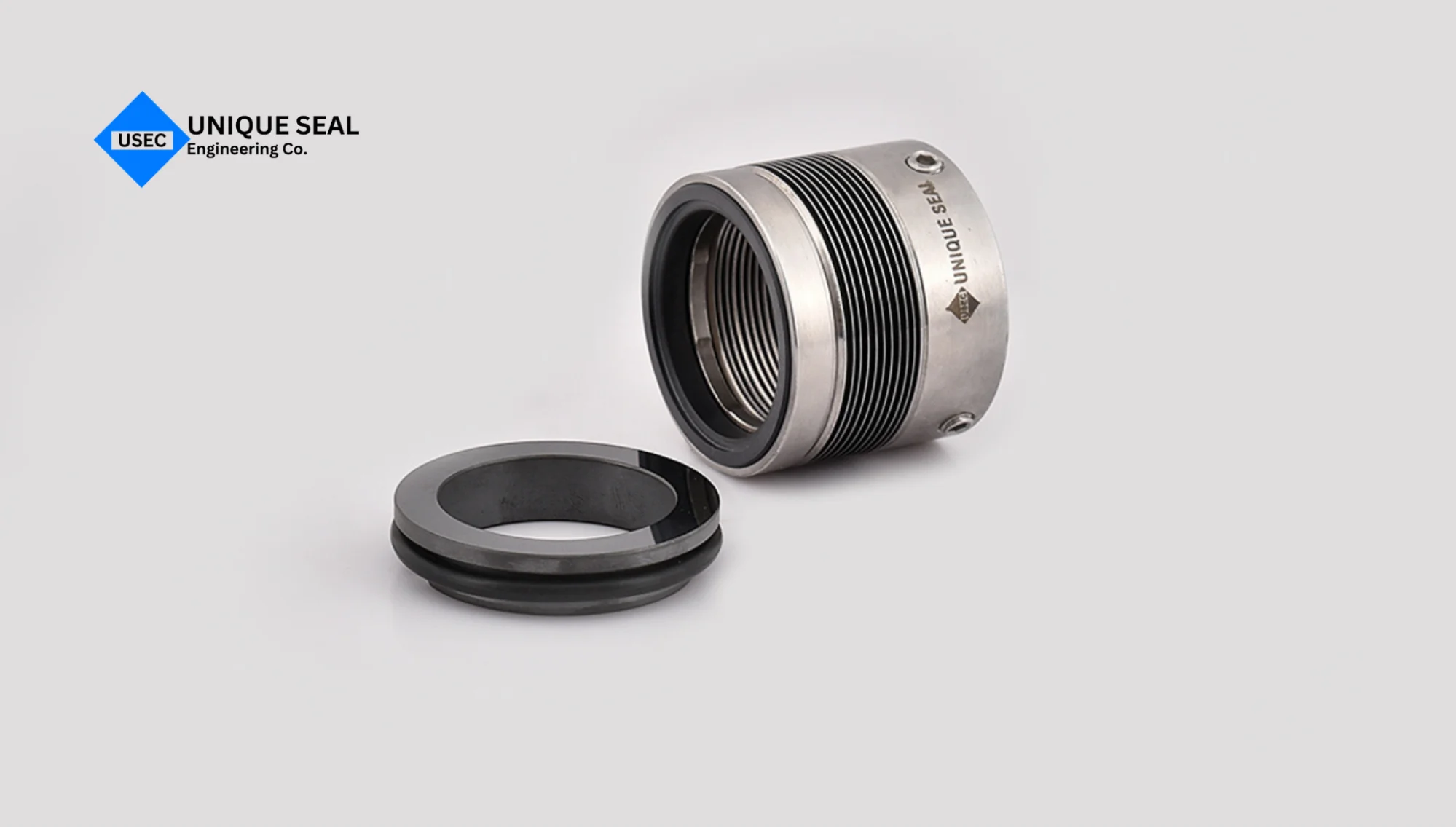

Metal bellows mechanical seals

Metal bellows mechanical seals use metal bellows instead of traditional springs. This design eliminates problems related to spring failure and improves reliability.

They are ideal for high-temperature and corrosive applications where standard seals may fail.

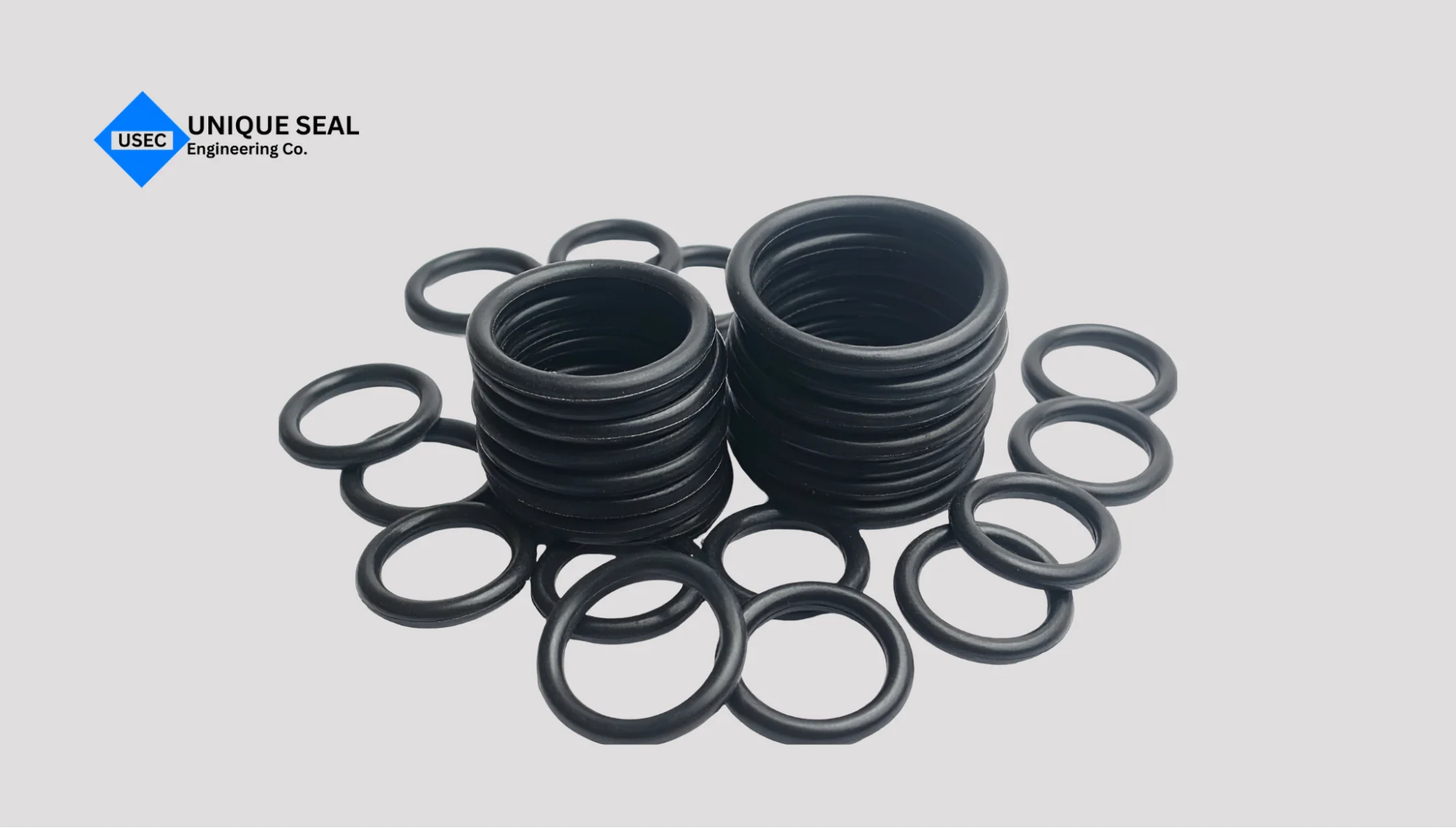

O-ring-mounted mechanical seals

These seals rely on O-rings for flexibility and sealing. They are commonly used in standard industrial pumps.

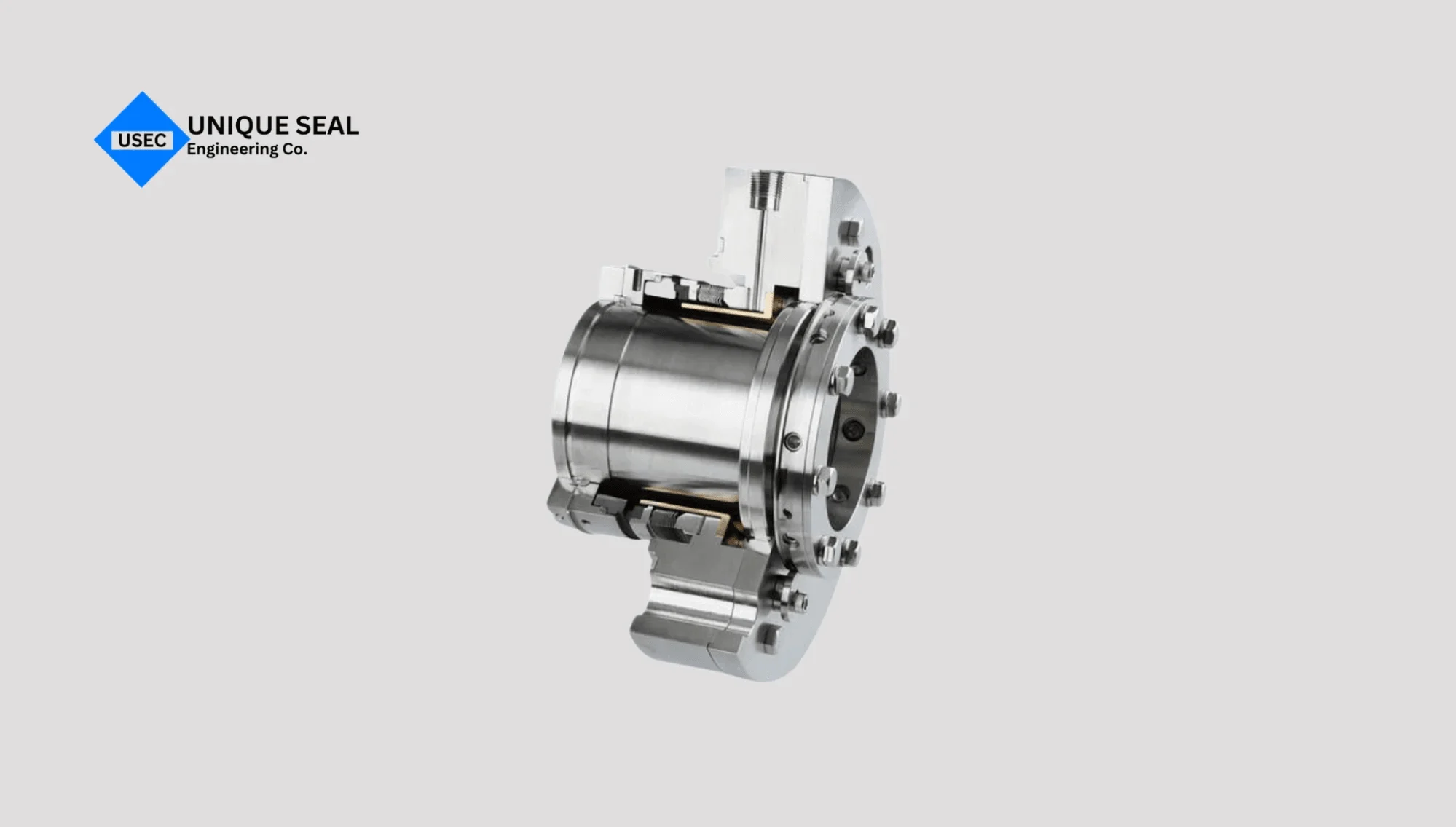

Split mechanical seals for large pumps

Split mechanical seals are specially designed for large industrial pumps. These seals can be installed without removing the pump shaft.

This makes maintenance easier and reduces downtime. They are ideal for large pumps where disassembly is difficult and time-consuming.

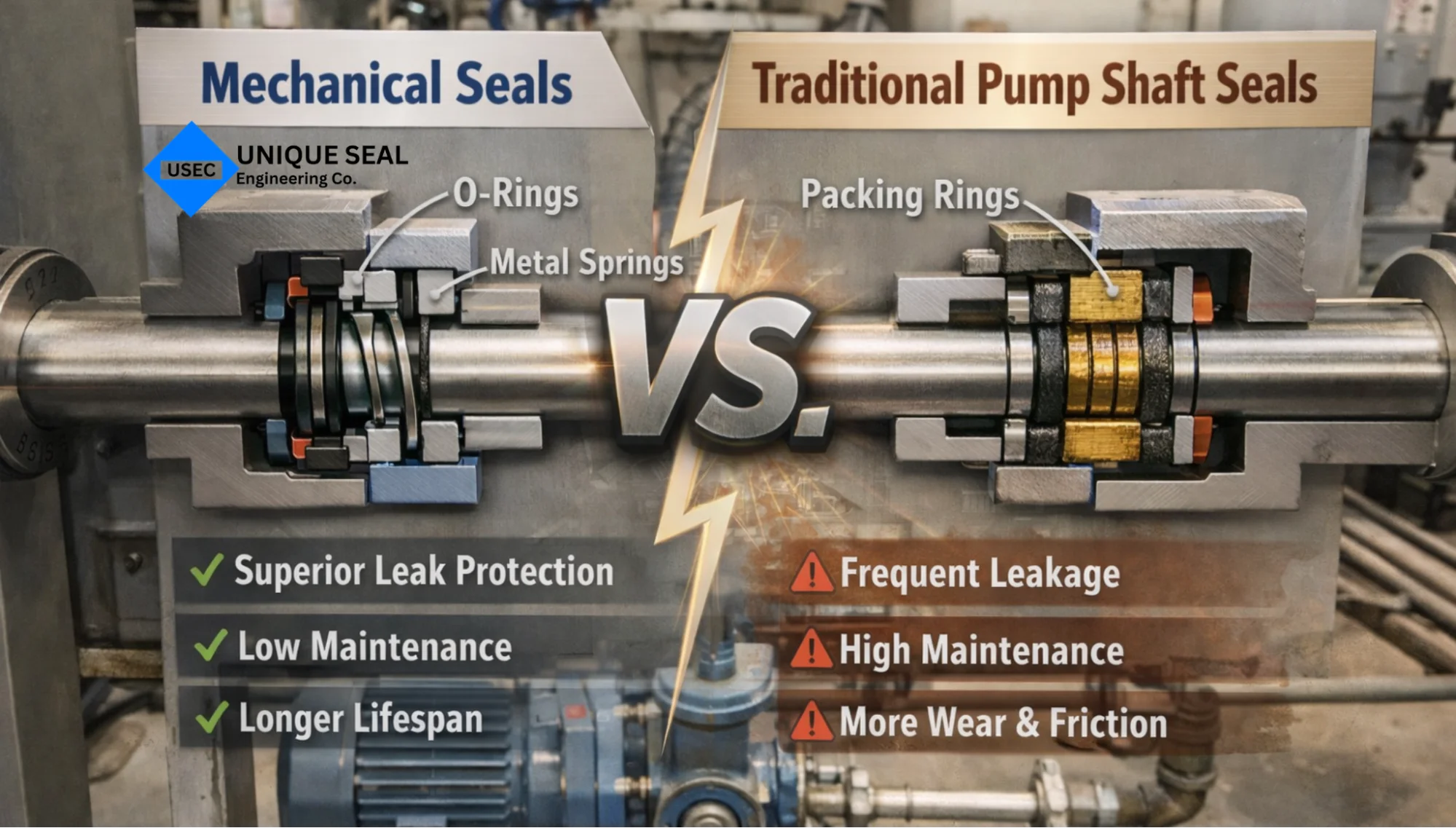

Mechanical seals vs. traditional pump shaft seals

Although mechanical seals are widely used today, older shaft sealing methods are still used in some applications.

Before mechanical seals became standard, older sealing methods were widely used. They are still used in some industries but have limitations. Mechanical seals generally offer better performance and reliability.

Gland packing (conventional packing) - old sealing method

How it works

Braided packing material is compressed around the shaft to reduce leakage.

Where it is still used today

It is still used in slow-speed pumps and low-cost applications.

Lip seals -simple shaft sealing option

Working mechanism

Lip seals use a flexible rubber lip that contacts the rotating shaft.

Suitable applications

They are used in low-pressure and clean fluid applications.

How to prevent mechanical seal failure in pumps

Most seal failures occur due to improper operation or installation. Understanding failure causes helps prevent future issues. Regular inspection and correct selection improve seal life.

Failure due to dry running

Dry running happens when a pump operates without enough fluid or completely without liquid. Mechanical seals depend on a thin fluid film for lubrication and cooling. When this film is missing, friction between seal faces increases rapidly, generating heat. This heat can crack, warp, or burn the seal faces, leading to immediate leakage or complete seal failure. Dry running is one of the most common and most damaging causes of mechanical seal failure.

Damage from shaft misalignment

Shaft misalignment occurs when the pump shaft is not perfectly aligned with the motor or seal housing. This creates uneven pressure on the seal faces, causing one side to wear faster than the other. Misalignment also increases vibration, which weakens springs, loosens components, and reduces seal stability. Over time, this leads to premature wear, face damage, and leakage. Proper alignment is critical for long seal life.

Problems from incorrect installation

Even the best mechanical seal can fail if it is installed incorrectly. Common mistakes include damaging O-rings, scratching seal faces, improper tightening, or wrong positioning of components. Poor installation can cause excessive friction, vibration, or misalignment. It may also lead to uneven face contact, resulting in leakage soon after startup. Careful handling and correct installation procedures are essential for reliable performance.

Issues from wrong seal selection

Choosing a seal that does not match the pump’s operating conditions is a major cause of failure. If the seal material is not compatible with the fluid, it can corrode or degrade. If the seal is not designed for the pump’s pressure or temperature, it may wear out quickly or fail suddenly. Selecting the right seal based on fluid type, pressure, temperature, and application is crucial to avoid unnecessary breakdowns.

How to select the best mechanical seal for your pump

Selecting the right seal plays a big role in improving pump performance and extending its service life. However, choosing the correct seal requires careful evaluation of operating conditions and fluid properties. That’s why many industries rely on mechanical seal manufacturing companies in India for expert guidance on selecting and applying the right seal. A properly chosen seal ultimately helps reduce maintenance needs and unplanned downtime.

Matching the seal to the pumped fluid

Different fluids behave differently inside a pump. Some are corrosive, some are abrasive, and others are highly viscous. The mechanical seal material must be resistant to the pumped fluid to avoid chemical attack or wear. For example, abrasive fluids need hard-face materials like silicon carbide, while corrosive chemicals may require special elastomers. Understanding the nature of the fluid helps in choosing the most suitable seal.

Evaluating pressure and temperature limits

Every mechanical seal is designed to operate within specific pressure and temperature ranges. If the pump operates beyond these limits, the seal may overheat, deform, or lose its sealing ability. High-pressure systems usually require balanced seals, while extreme temperatures need heat-resistant materials. Always check the manufacturer’s specifications before selecting a seal.

Checking chemical compatibility

Seal components such as O-rings, gaskets, and seal faces must be chemically compatible with the pumped fluid. If not, they may swell, harden, crack, or degrade over time. For example, certain elastomers may not work well with oils or strong acids. Verifying chemical compatibility ensures longer seal life and safer operation.

Considering maintenance and long-term cost

A cheaper seal may seem attractive initially, but frequent failures can increase downtime and repair costs. A high-quality seal may cost more upfront but offer better reliability and a longer service life. Cartridge seals, for example, are easier to install and maintain, reducing human error and maintenance time. Considering total long-term cost, rather than just purchase price, helps in making a smarter decision.

So which mechanical seal is the right choice for your pump?

Choosing the right pump mechanical seal is not just a technical decision, it is a reliability decision. Every pump operates under different pressure, temperature, and fluid conditions, so the seal must match those exact requirements.

The type of pump mechanical seal matters less than how correctly it is selected and installed. From single and double seals to bellows and cartridge designs, each type serves a specific purpose in maintaining safe and efficient operation.
